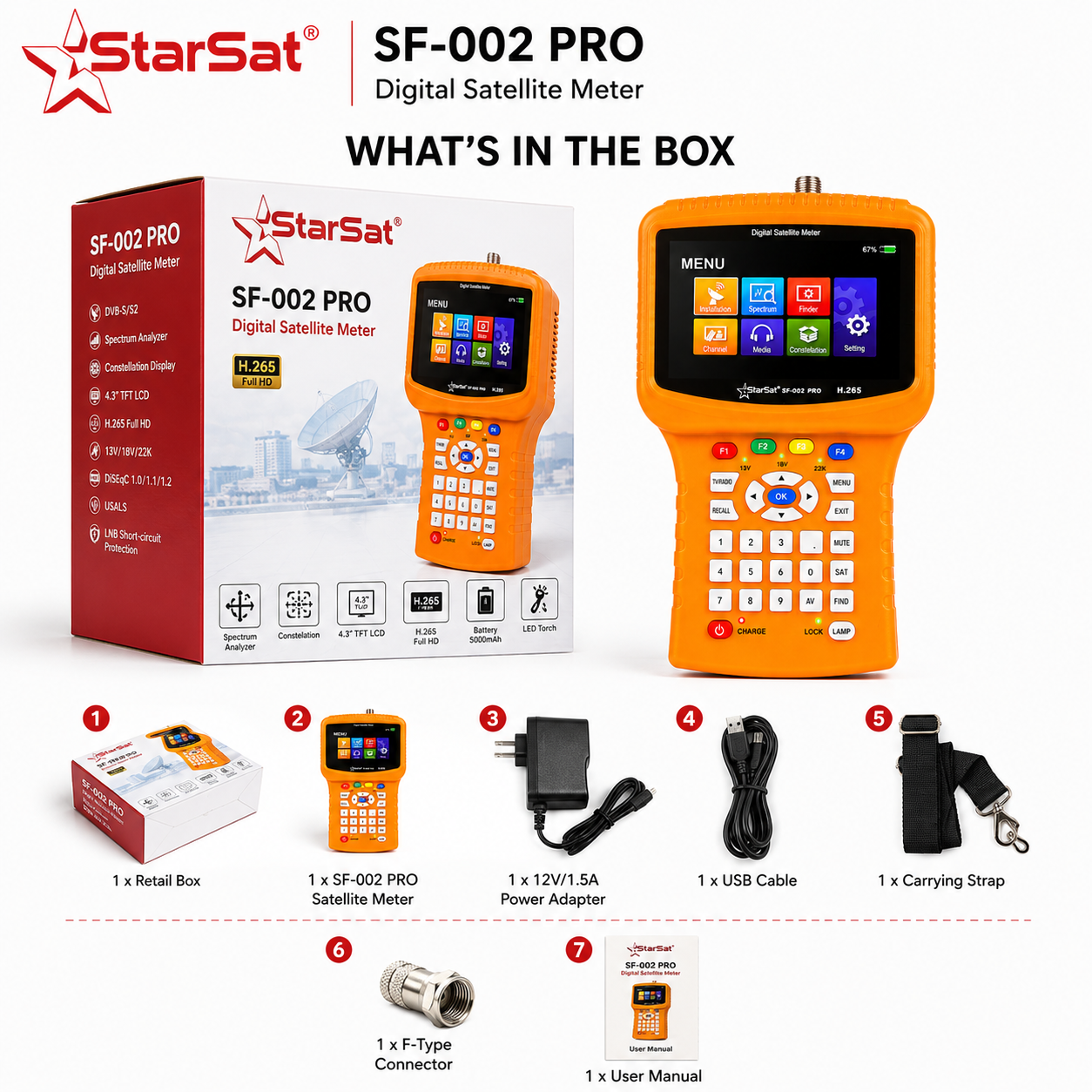

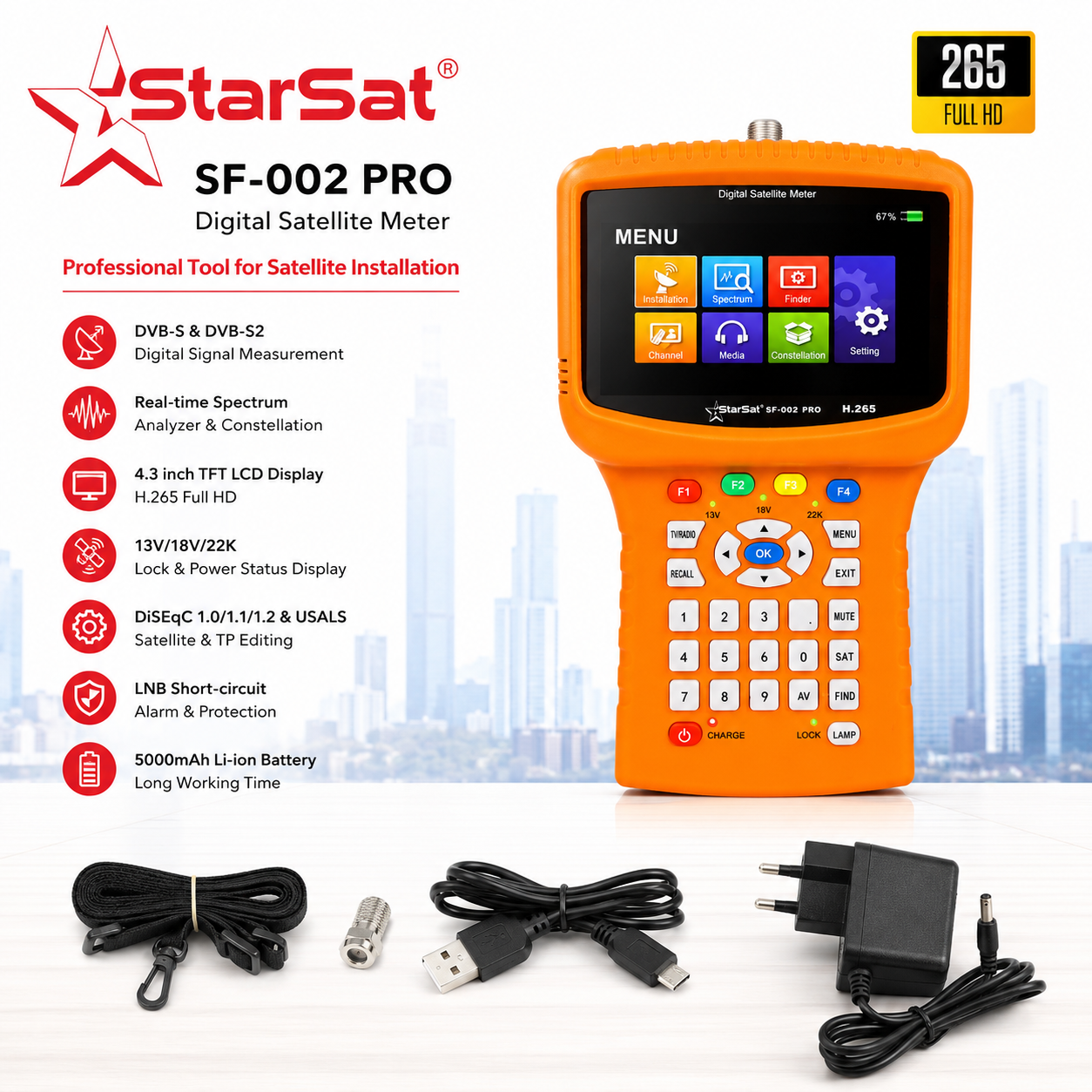

StarSat SF-002 PRO Digital Satellite Meter The StarSat SF-002 PRO is a portable H.265/HEVC DVB-S/S2 signal meter for professional satellite installation, alignment and troubleshooting. Its 4.3-inch color display combines live TV viewing with advanced spectrum and constellation tools, while the built-in battery, speaker, LED torch and kickstand support field work. Key Features H.265/HEVC DVB-S/S2 Full HD handheld multifunction meter 4.3-inch TFT LCD with live free-to-air TV viewing Real-time spectrum analyzer and constellation display BER, MER, C/N, SNR, signal strength and signal quality measurement QPSK, 8PSK, 16APSK and 32APSK modulation support 13V/18V/22K control with lock and power status indicators DiSEqC 1.0/1.1/1.2/1.3 USALS and 2.0 support CVBS CCTV camera testing through AV input LNB short-circuit alarm and protection 5000mAh battery, built-in speaker, LED torch and foldable kickstand Specifications Model SF-002 PRO Signal Standards DVB-S/S2, H.265/HEVC Display 4.3-inch TFT LCD Frequency Range 950-2150 MHz Symbol Rate 1-45 Mbps Input Level 25-110 dBuV, 75 ohm Measurements BER, MER, C/N, SNR, signal strength and quality, constellation Interfaces RF input, AV input/output, HDMI 1.4, USB 2.0, Micro USB DC output and DC input Memory 64 Mb flash, 1024 Mb RAM Battery 5000mAh / 7.4V; approximately 3-4 hours working time Dimensions 200 x 120 x 60 mm Weight 0.58 kg Operating Temperature 0 to 50 C Brand StarSat In the Box SF-002 PRO meter, user manual, carrying bag and strap, AV cable, F-type connector and power adapter.
